The Ultimate Guide to R-Values for Red Iron Building Insulation
TL;DR:
R-value measures insulation’s heat resistance - higher is better. For red iron buildings, insulation choice impacts comfort and efficiency.
Best roof options: Single-layer (cheap), double-layer banded (balanced), and insulated metal panels (premium).
Walls: Avoid compression; liners or IMPs improve performance.
Condensation: Use vapor barriers to prevent rust and mold.
Value picks: R-19 for storage, R-30 double-layer for mixed use, IMPs for climate-controlled spaces.
Bottom line: Double-layer banded insulation gives the best balance of cost and efficiency; insulated metal panels (IMPs) offer top long-term performance.
What are R-Values?
R-value is a term in insulation that describes the material’s ability to resist heat flow. The higher the R-value, the better the insulation handles temperature swings.
Red iron buildings can be among the most energy-efficient structures available. However, much of that efficiency depends on having the right type of insulation.
In this guide, we’ll cover the various insulation options available for red iron steel structures, their R-values, and how to select the right material for your structure type and location. If you’re in the market for a red iron metal building, you’ll want to keep reading for some handy information that can keep your building performing its best.
R-Value vs. U-Factor: What Inspectors Actually Approve
While the R-value is an important part of making your red iron building project comfortable and energy-efficient, inspectors usually don’t stop there. They look at the U-Factor, which is the flip side of the same coin.
The R-value is similar to measuring the warmth of a jacket by its thickness of fabric. U-Factor is similar to wearing a jacket and seeing if you still feel the wind. That's why inspectors rely on U-Factor to tell them how the entire system, from insulation to panels and air gaps, actually performs.

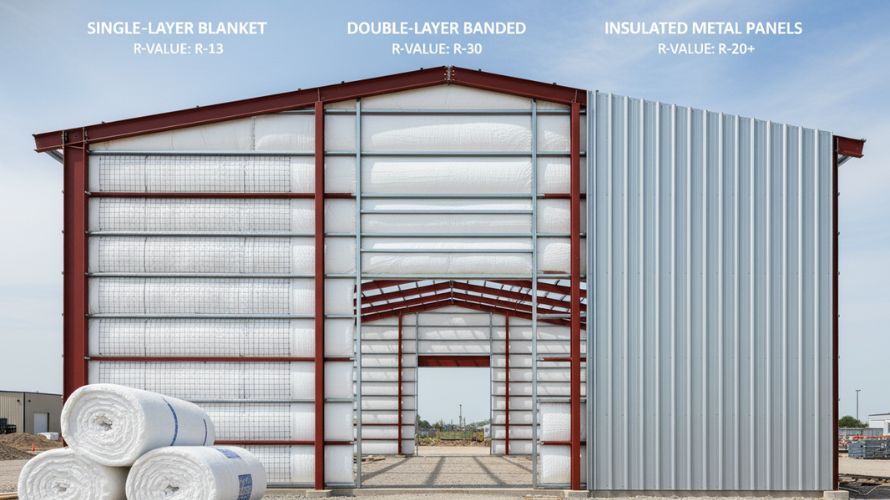

Roof Insulation for Red Iron Buildings
The roof of your red iron building is where you’ll win or lose the battle against heat. It takes all the sun, all the rain, all the extremes. Let’s look at the usual choices for red iron building roof insulation:
Single-Layer Blanket
Single-layer insulation is the cheapest and easiest to install. Roll out fiberglass over the framing, screw down the panels, and you’re done. Just don’t expect miracles. Once it’s compressed under the roof sheets, you lose a chunk of the rated R-Value.
Double-Layer Banded
Double-layer bonded insulation features one layer between the framing, with another stretched across the top, which are held in place with steel bands. Less compression means better thermal performance, and for most folks trying to balance cost and comfort, this ends up being the "happy middle."
Insulated Metal Panels (IMPs)
This is the premium option. The panel itself has rigid foam sandwiched between two sheets of metal. No fuss, no compression, just high consistent performance and really good moisture control. The upfront cost is higher, but they’re tough to beat in long-term efficiency.
Wall Insulation: Girt Spacing, Compression, and Liner Options
Walls don’t get the same beating as the roof, but they still count. The tricky part is spacing. If your girts are too far apart, insulation tends to sag or gap. Compression is another killer. Stuff your insulation too tightly, and the R-Value drops.
That’s why some builders add liner systems inside. A liner keeps the insulation snug, cleans up the interior's appearance, and reduces air leaks. However, sometimes, especially if you want a cleaner finish or are in a strict climate zone, insulated metal panels are the better option. They’re plug-and-play and remove a lot of the headaches.
How Do Different Insulation Types Stack Up?
Which insulation type is right for your red iron steel structure? This is a simple way to rank the options without overthinking it:
| Insulation Type | Good | Better | Best |
|---|---|---|---|
| Single-Layer Blanket | ✅ | - | - |
| Double-Layer Banded | - | - | ✅ |
| Insulated Metal Panels | - | ✅ | - |
Moisture and Condensation Control
If you've ever walked into a metal building on a chilly morning and felt the "drip-drip" from the roof, you already know why this matters. Condensation forms when warm air inside comes into contact with cold metal. Insulation acts like a buffer, keeping interior surfaces warmer and reducing that problem. Add the right vapor barrier, and you'll cut down on rust, mold, and that musty smell nobody wants in their shop or barn.
Where Does Your Dollar Work the Hardest?
Where do you maximize your buying power when it comes to red iron building insulation? Let’s get the breakdown in plain English:
| Type | Description |
|---|---|
| R-19 Single-Layer | It’s cheap, it’s fast, and it works fine for storage where climate control isn’t a concern. |
| R-30 Double-Layer Banded | Costs more, but delivers real thermal performance without straying into premium territory. For most mixed-use buildings, this is the sweet spot. |
| Insulated Metal Panels | They're pricey upfront but deliver the best efficiency and moisture protection. If you have a commercial project or will be heating and cooling the space daily, this is the one that usually makes the most sense in the long term. |
Buildings And More is Your Leading Provider of Red Iron Steel Buildings
With years of experience and a dedication to craft, we’re proud to be a trusted source for high-quality outdoor buildings. Our red iron structures are built with thick steel framing, industry-leading engineering, and made to tackle any heavy-duty job you have in mind.
Use them to store farming equipment, commercial storage, warehousing, manufacturing, and more. Wherever you go, our buildings are made to follow.
Contact us today at (386)755-6449 to discover our comprehensive range of red iron structures. We’ll answer your questions and show you why Buildings And More is second to none.
FAQs About Red Iron Building Insulation
You probably have a question or two about insulation for red iron structures. To help, we’ve answered a few of the ones that cross our desk:
What’s the minimum insulation rating I need?
- Most places require at least R-19 for roofs, but codes vary.
Can I add insulation after the building is up?
- You can, but it’s usually more expensive than doing it during the construction phase.
Do insulated metal panels replace fiberglass?
- Yes. They handle insulation and wall finish all in one.
How long does fiberglass hold up?
- If it stays dry and covered, it can last for decades.
Is more thickness always better?
- Not if it gets crushed. Fit matters just as much as depth.
How do I know if condensation is an issue?
- Look for drips, water stains, or damp smells inside.
Why is the U-Factor checked in inspections?
- Because it shows how the whole system performs—not just one material.
